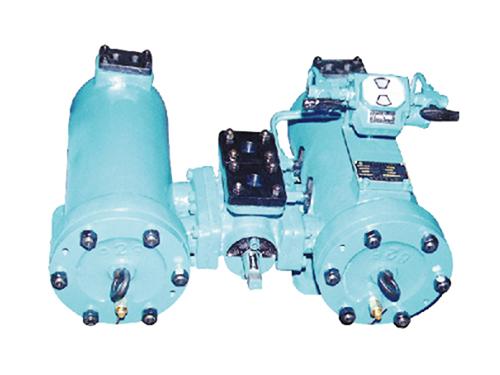

Dual Cylinder Fuel Oil Filter

Application

The SCZL dual cylinder fuel oil filter is designed as a capable filter for the heavy fuel oil of diesel engines.

Characteristics

1. The filtration element used is a candle filter element, which offers lower flow resistance and easier maintenance.
2. When the pressure decreases in the rated value, the filtration progress can be changed to another chamber without having to stop the engine.
3. There is a heating chamber under the filter to warm up heavy oil by inputting steam or hot oil. A differential pressure clogging indicator is installed on the filter to instantly detect the pressure, when the value decreases to the rated value, it will automatically alarm to remind you of cleaning in time.

Technical parameters
  • When choosing the filter flow, you need to take filter fineness, pressure drop and fuel oil viscosity into consideration.
  • Working temp ≤150℃
  • Working pressure ≤1.6Mpa
  • Pressure of heating medium ≤0.7Mpa
  • Alarm pressure drop: 0.08Mpa, 0.12Mpa, 0.15Mpa
DN (mm) Rated flow rate (m3 /h)
32 2
40 4
50 7
80 17
Basic parameters
Outside shape of SCZL XX AZ (XX means DN)
Diameter (mm) Outline Dimension (mm) Demountable height of filter element (mm) Connection dimension of pipeline (mm) Mounting dimension of pipeline (mm) Mounting dimension of base (mm)
DN H B L H1 Do Φ C h B1 C1 h2 W H2 h1 L1 L2 L3 L4 b n d1
32 560 290 600 360 43 22.5 70 85 185 238 33 95 456 80 220 550 150 385 18 8 22
40 605 290 642 440 49 22.5 80 120 205 230 33 95 492 125 262 592 150 427 18 8 22
50 715 290 642 510 61 22.5 80 120 205 338 33 95 600 125 262 592 150 427 18 8 22
80 970 290 665 540 80 22.5 140 200 220 452 33 95 850 255 285 515 170 450 22 8 22
Notice: Manufacturer offers companion flange and differential pressure clogging indicator is optional.
