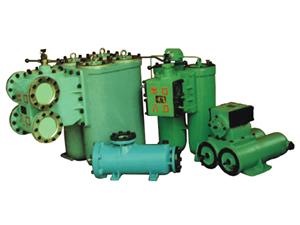

Single Cylinder Oil Pan Filter (Fuel Oil Filter, Lubricating Oil Filter)

Application

The DPL single-cylinder oil pan filter is engineered for the filtration of lubricating oil and fuel oil utilized in marine diesel engine and stationary diesel engines. The filters are also suited for applications in the petroleum industry, chemical engineering, and electrical generation industry.

Characteristics
  • DPL single-cylinder oil pan filter features a large filtration area, which offers better oil penetrability and lower pressure.
  • The oil pan filter can be easily maintained, with no frequent washing necessary.
  • Equipped with a differential pressure clogging indicator, the pressure difference is shown instantly. When the value reaches certain value, it will automatically alarm to remind you of clearance.
Parameters for DPL25 single-cylinder oil pan filter
Nominal diameter (mm) Outline dimensions (mm) Distance of disassembly (mm) Connecting dimensions of pipe (mm) Mounting dimensions of pipe (mm) Mounting dimensions of base (mm) Net Weight (Kg)
DN H B L H1 D D0 C h B1 H2 h1 L1 L2 b R n d1
25 315 130 135 270 M39x2 pipe connector 25 34 60 70 264 139 100 90 12 15 4 16 6
Notice: Differential pressure clogging indicator can fluctuate.
Inquiry Form
Parameters for DPL40 single-cylinder oil pan filter
Nominal diameter (mm) Outline dimensions (mm) Distance of disassembly (mm) Connecting dimensions of pipe (mm) Mounting dimensions of pipe (mm) Mounting dimensions of base (mm) Net Weight (Kg)
DN H B L H1 D D0 C h B1 H2 h1 L1 L2 b R n d1
40 440 143 173 360 66x66 45 36 70 80 364 177 130 125 14 20 4 18 12
Notice: Square flange is equipped with DN40 and differential pressure clogging indicator can fluctuate.
Inquiry Form
Parameters for DPL65 single-cylinder oil pan filter
Nominal diameter (mm) Outline dimensions (mm) Distance of disassembly (mm) Connecting dimensions of pipe (mm) Mounting dimensions of pipe (mm) Mounting dimensions of base (mm) Net Weight (Kg)
DN H B L H1 D D0 C h B1 H2 h1 L1 L2 b R n d1
65 580 195 285 535 100x100 70 79 105 105 517 261 165 150 18 25 4 22 25
Notice: Square flange is equipped with DN65 and differential pressure clogging indicator can fluctuate.
Inquiry Form
Parameters for DPL80 single-cylinder oil pan filter
Nominal diameter (mm) Outline dimensions (mm) Distance of disassembly (mm) Connecting dimensions of pipe (mm) Mounting dimensions of pipe (mm) Mounting dimensions of base (mm) Net Weight (Kg)
DN H B L H1 D D0 C h B1 H2 h1 L1 L2 b R n d1
80 700 238 320 685 ￠185 89 90 120 128 630 310 170 170 18 25 4 22 30
Notice: The standard for DPL80 is GB573-65, for screwed pipe connector is GB500-75. Differential pressure clogging indicator can fluctuate.
Inquiry Form

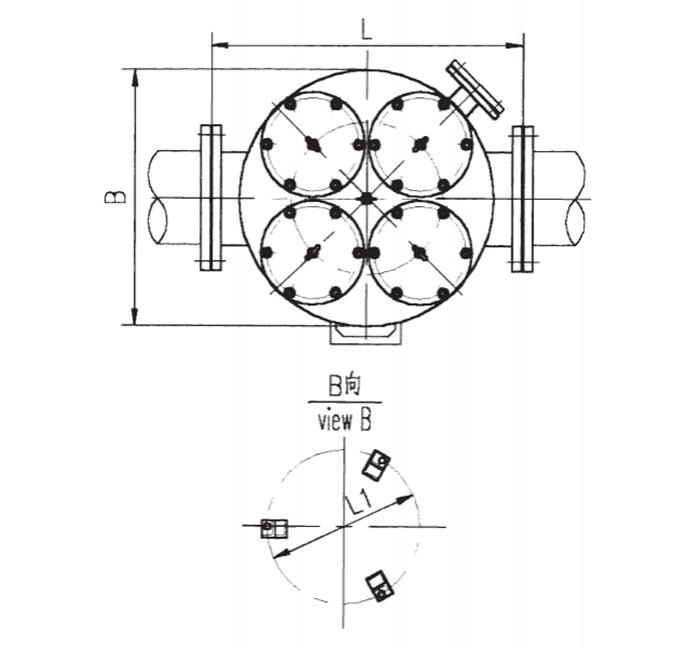

Parameters for DPL100, DPL150 and DPL200 single-cylinder oil pan filter
TYPE Nominal diameter (mm) Outline dimensions (mm) Distance of disassembly (mm) Connecting dimensions of pipe (mm) Mounting dimensions of pipe (mm) Mounting dimensions of base (mm) Net Weight (Kg)

DN H B L H1 D D0 D' D0' C h I C' H2 L1 b n d1
DPL100 100 800 412 528 790 190 108 140 42 290 360 264 150 734 335 18 3 18 115
DPL150 150 940 550 660 790 240 159 135 57 380 380 335 180 870 470 20 3 24 160
DPL200 200 1050 612 750 945 310 219 135 57 438 400 368 180 980 550 20 3 24 210
Notice: The standard for flange is GB573-65 (alternative). There are 4 units of filter element. Differential pressure clogging indicator can fluctuate.
Inquiry Form
