Semi-Automatic Self-Cleaning Oil Filter (Fuel Oil Filter, Lubricating Oil Filter, Diesel Filter)

Application

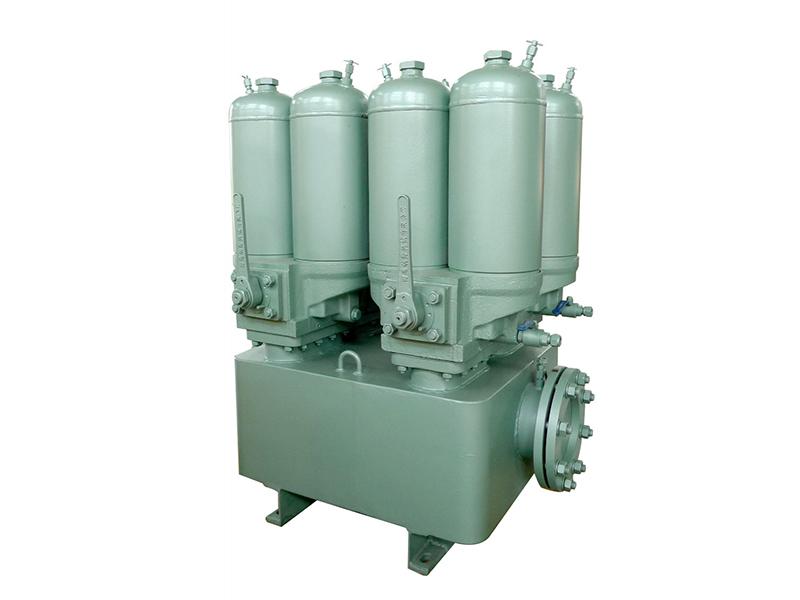

The SBL semi-automatic self-cleaning oil filter is mainly used in the filtration of fuel oil, lubricating oil, and diesel oil. It effectively removes undissolved dirt from the medium to ensure the oil is clean and safe for use. Some other applications can be applied depending on various working conditions.

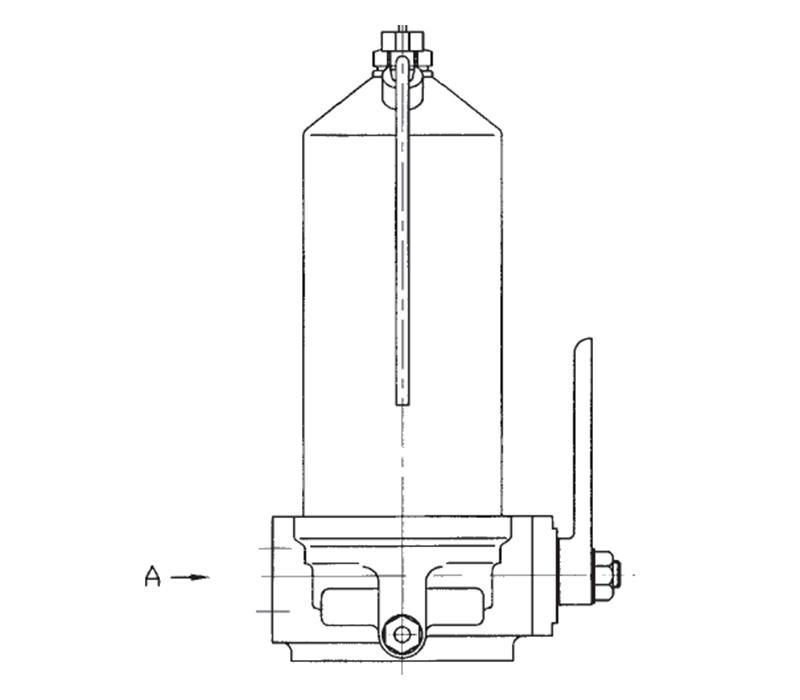

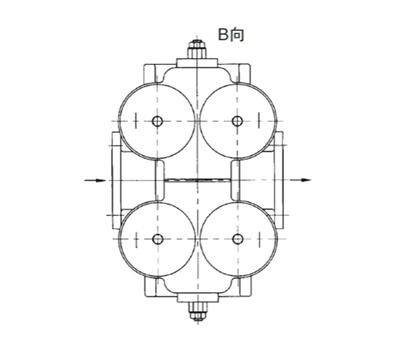

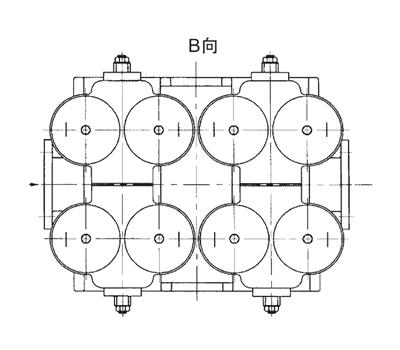

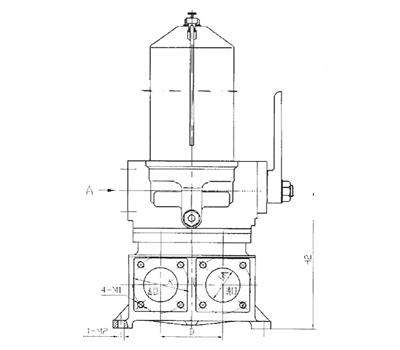

Parameters

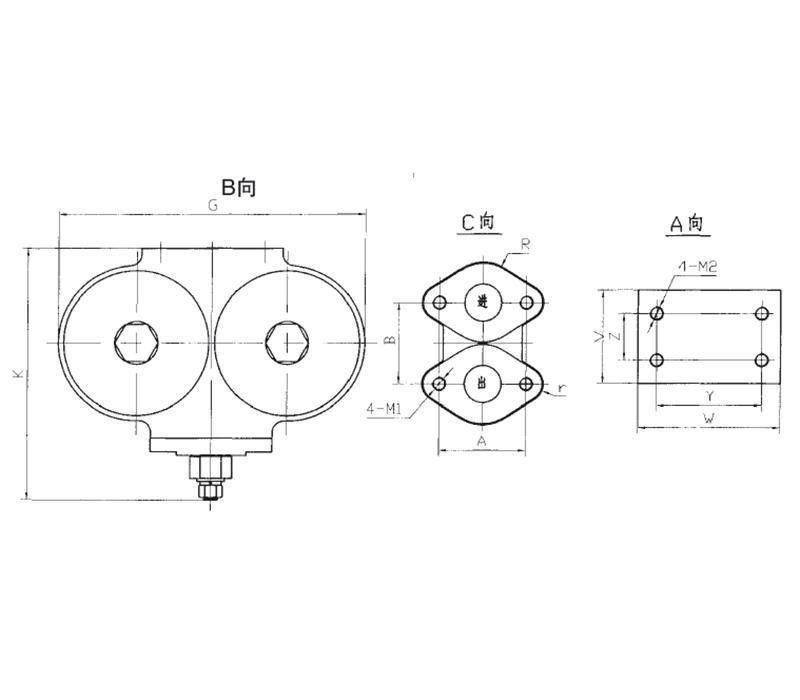

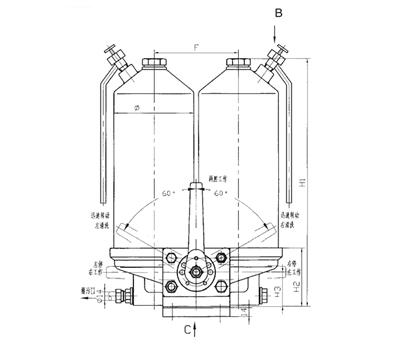

TYPE Flow rate m3/h (reference) Diameter and connection dimension(mm) Outline dimension (mm) Mounting dimension (mm) Weight (kg)
DN A B R r 4-M1 H1 H2 H3 F Φ G K W V Y Z 4-M2
SBL20 1-2 20 62 55 28 11 M10 360 77 45 110 98 222 206 100 70 75 35 M10 25
SBL25 2-4 25 30
SBL32A 4-7 32 75 70 35 15 M12 385 92 54 130 125 265 226 122 80 90 40 M12 47
SBL40 7-10 40 480 94 52 50

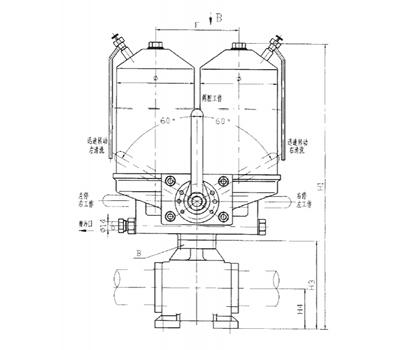

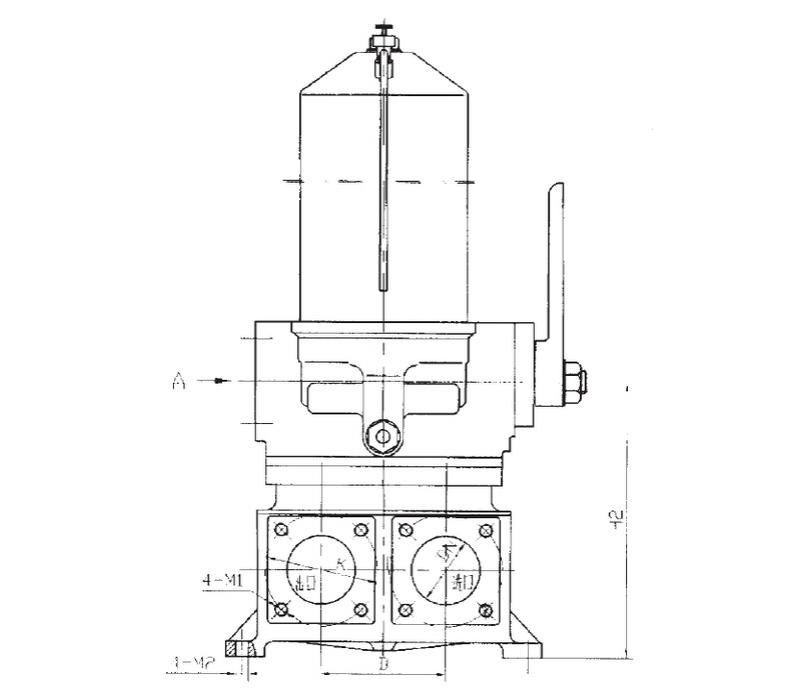

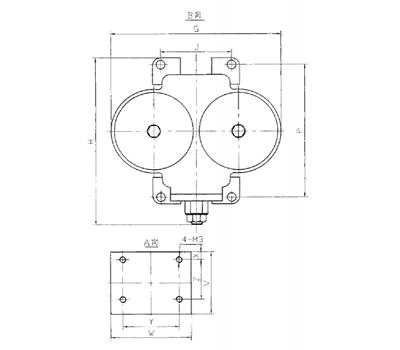

TYPE Flow rate m3/h (reference) Diameter and connection dimension(mm) Outline dimension (mm) Mounting dimension (mm) Weight (kg)
DN D K 4-M1 H1 H2 H3 H4 F O G H P J 4-M2 W V Y Z X 4-M3
SBL50 10-25 50 120 110 M12 540 253 184 86 165 155 330 350 258 136 Φ14 150 115 110 78 13 M12 67
SBL65 25-30 65 750 16 71
SBL80 25-40 80 146 182 M14 740 320 224 102 200 190 424 400 334 244 Φ16 200 145 160 100 26 M16 135

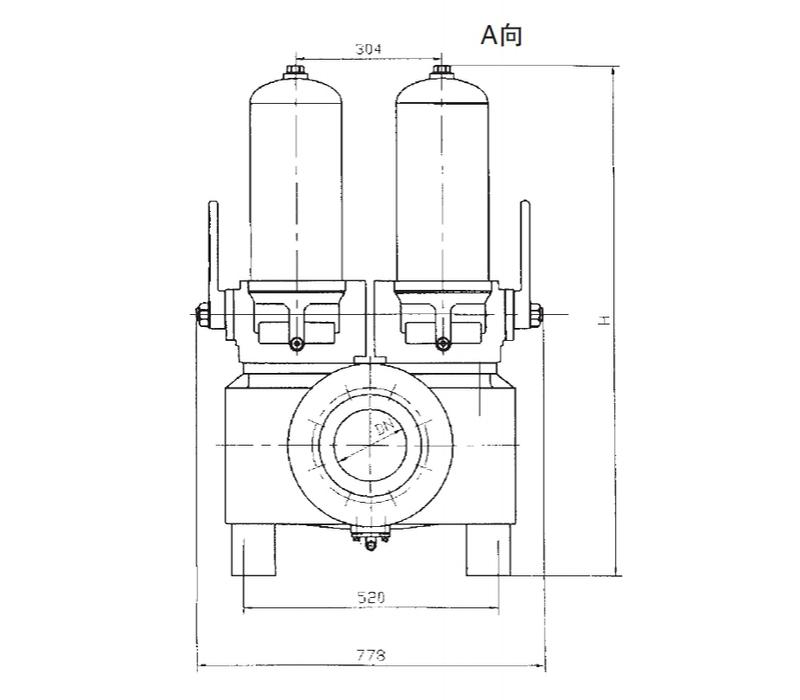

TYPE Flow rate m3/h (reference) Diameter and connection dimension(mm) Weight (kg)
DN D D1 D2 n-d H weight
SBL100 60-100 100 250 180 158 8-M16 965 248
SBL125 125 210 184 8-M16 1066 254

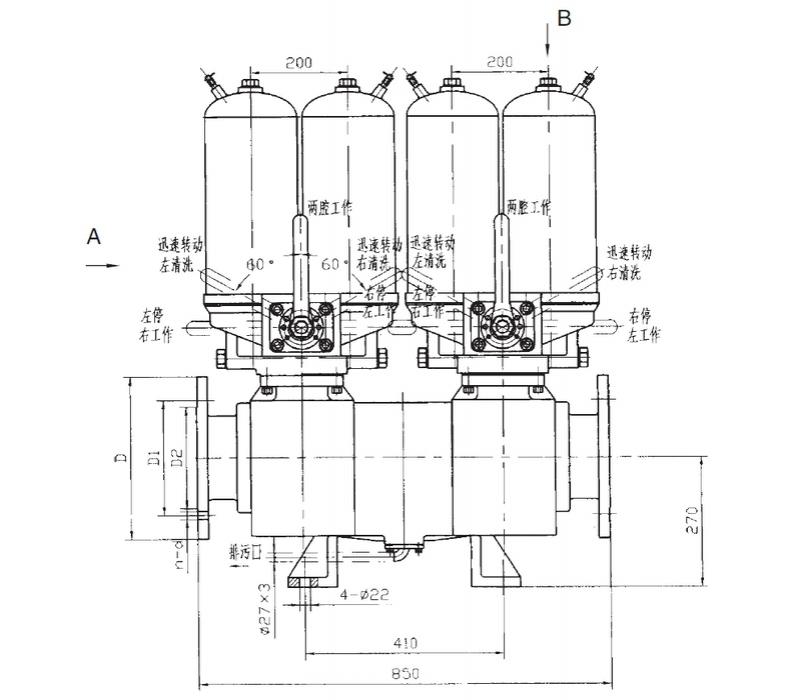

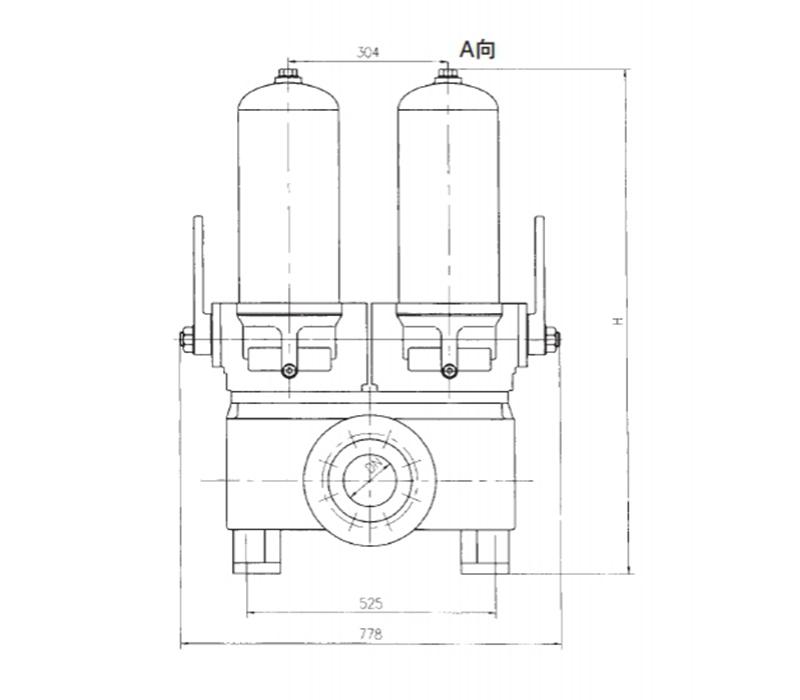

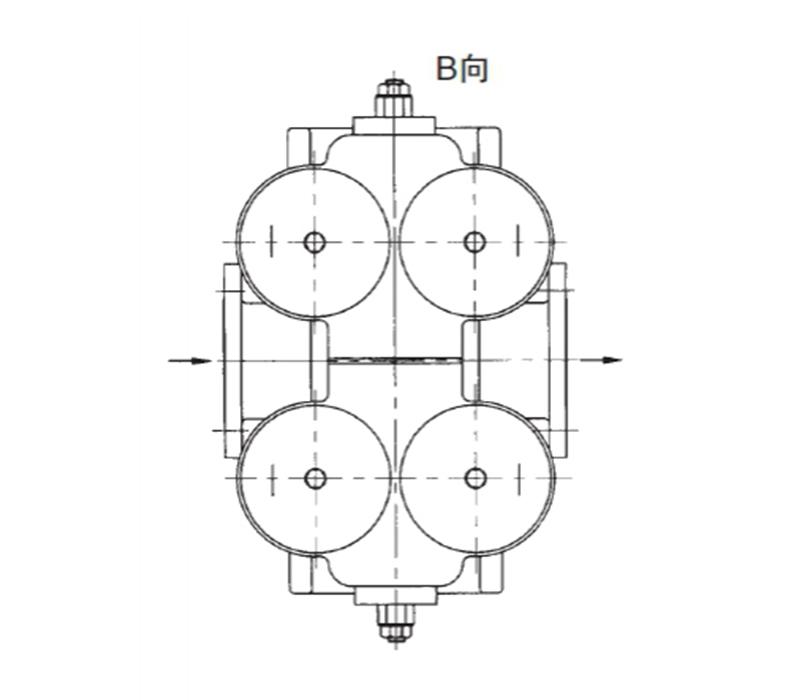

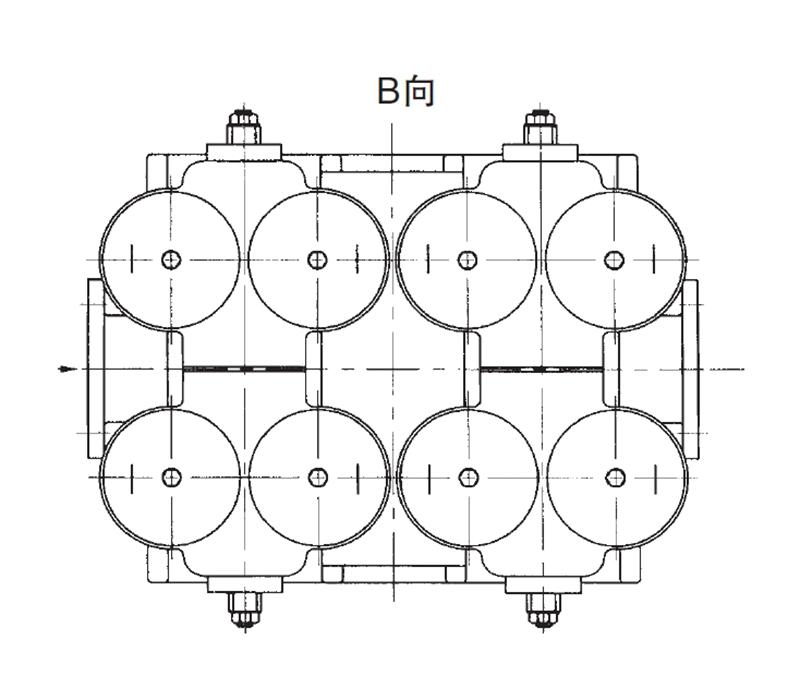

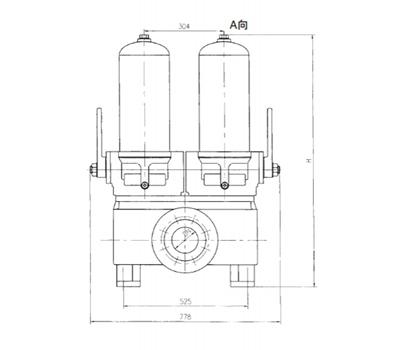

TYPE Flow rate m3/h (reference) Diameter and connection dimension(mm) Weight (kg)
DN D D1 D2 n-d H weight
SBL150 100-170 150 340 240 212 8-M20 1160 579
SBL200 200 295 268 8-M22 1260 610
Characteristics
  • Our semi-automatic self-cleaning oil filter adopts a candle filter element, which makes our filter both efficient and convenient for cleaning.
  • The working pressure is 0.6~1.0Mpa and the working temperature should be no more than 150℃.
  • The material for the filter screen is 1Cr18Ni9Ti.
  • When the filter pressure decreases to the rated value, turning the hand shank back and forth several times can realize cleaning when the filter is operating.
Cleaning method

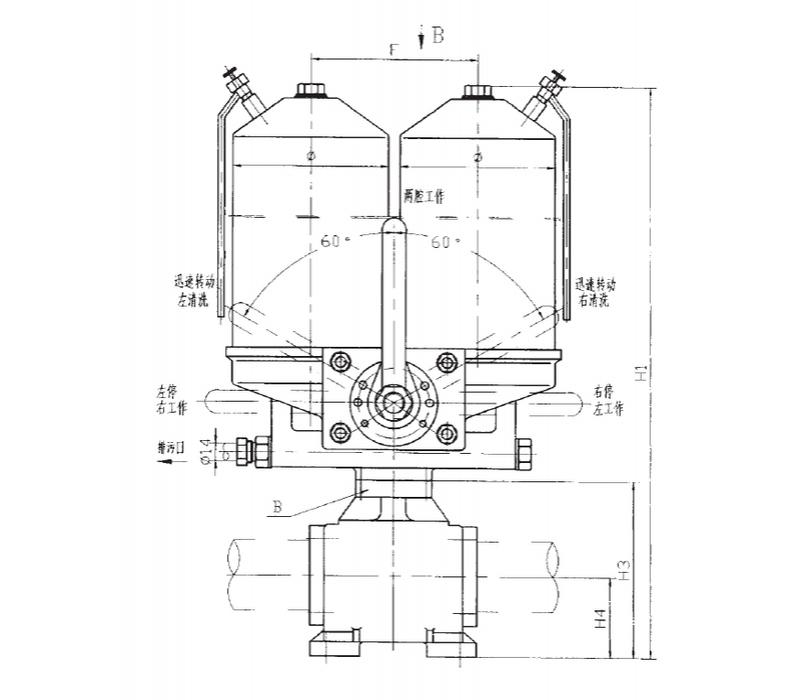

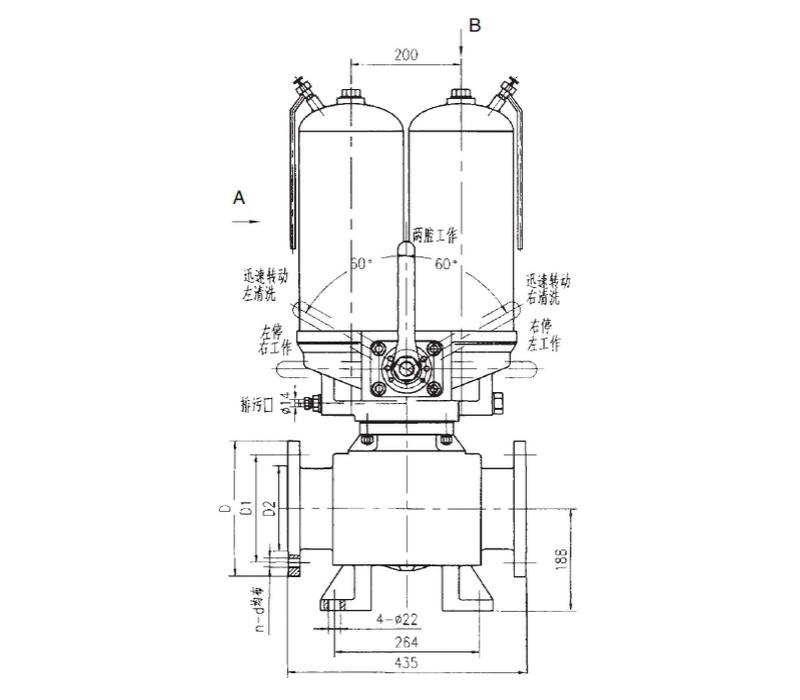

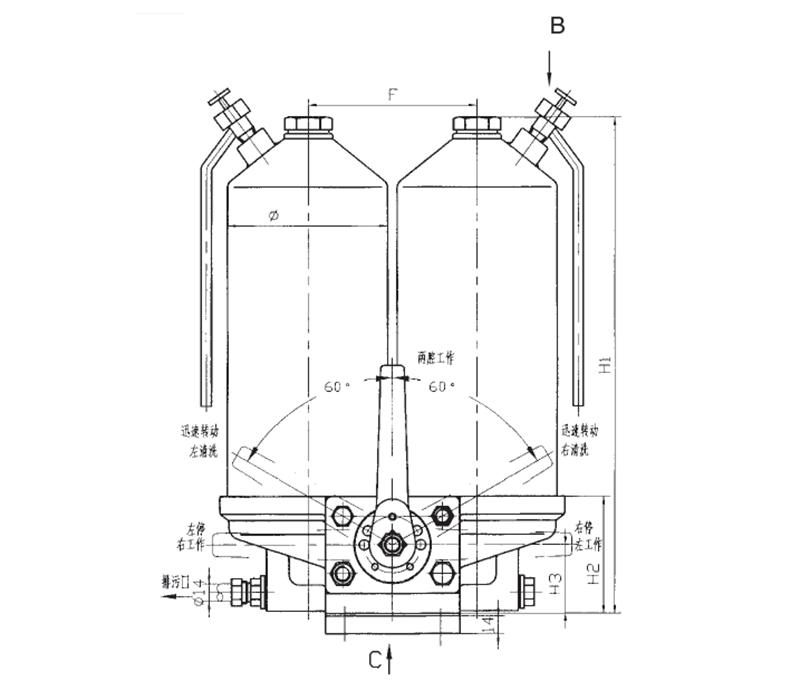

  • Left chamber cleaning: Swiftly turn the hand shank from vertical position to the left 60° for a 1~2 second washing, repeat several times and turning the hand shank back to the vertical, this completes the left chamber cleaning process.
  • Right chamber cleaning: Swiftly turn the hand shank from the vertical position to the right 60° for 1~2 second washing, repeat several times and turning the hand shank back to the vertical position, this completes the right chamber cleaning process.
  • When the filter element needs to be removed and washed, you should turn the hand shank from the vertical position to the left 90° and then the left chamber will stop working, this will allow you to move it and clean it thoroughly. For the right chamber's cleaning, reverse the turning direction.
