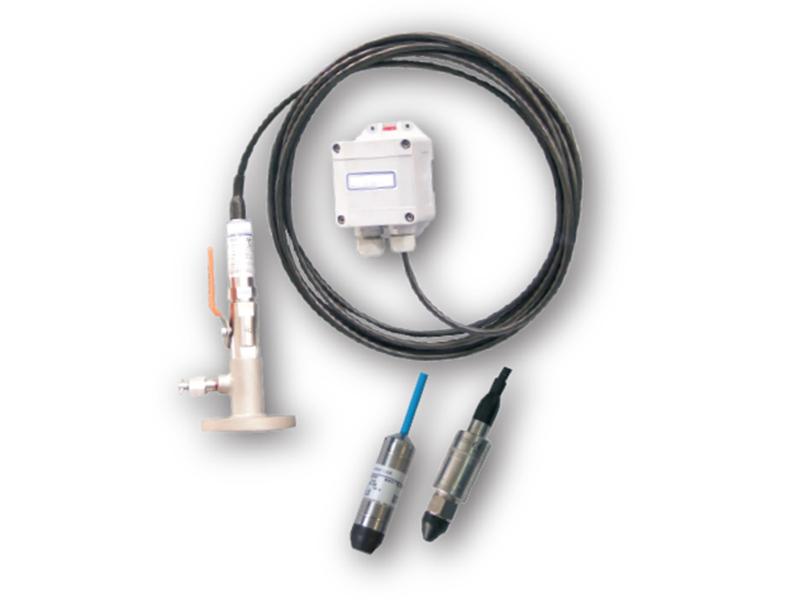

Electric Pressure Type Remote Tank Level Monitoring System

The electric pressure type remote tank monitoring system features a sensor installed in the bottom of the liquid tank. It can sense and display pressure changes caused by level fluctuations. The device transmits the level height data to the pressure electric signal. The electric signal is changed to the analog signal output of 4~20mA by the amplifier and transfers the level indicator or computer through a safety barrier.

• Output: 4-20mA
• Measurement precision: ±0.5%F.S
• Sensor material: membrane, ceramics
• Body material: stainless steel 316L
• Protection grade: IP68
• Length of cable: standard 3m (optional 40m)

The body of the electric pressure type remote tank monitoring system is stainless steel, it has the characteristics of high measurement precision, good stability, slushing and no measurement hysteretic phenomenon.
